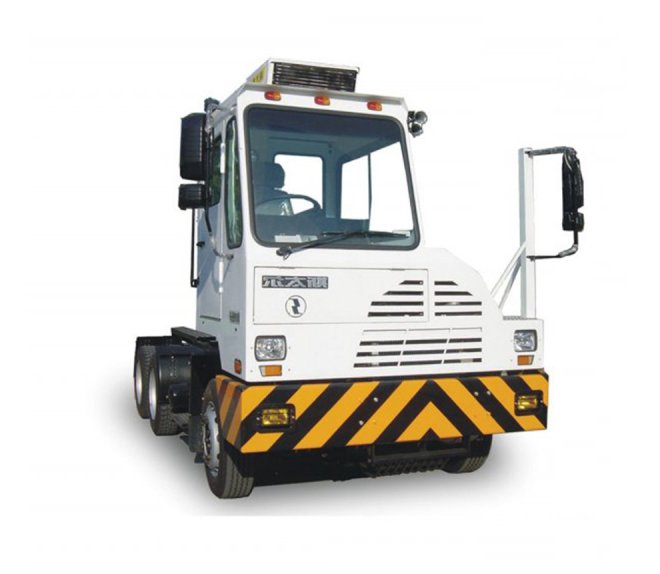

SHACMAN 6x4 Automatic Terminal Tractor

Vehicle Type

Terminal Tractor

Traction type:

6x4

Drive type:

LHD/RHD

Cab:

Side cab with A/C on the top

Engnie:

Weichai Steyr WD615.56

Hores power:

260HP

Max torque:

1150N. M@2200rpm

Displacement:

9.726L

Gearbox:

Allison MD4430 automatic gearbox

Steering:

ZF8098

Front axle:

MAN 7.5 tons

Rear axle:

Steyr 16tons double reduction rear axle, ratio 11.98

Chassis:

850mmx300x80x(8+5)

Kerb mass(kg):

9000

Traction load:

41 tons

Brake:

Brake drum on front and rear axle

Tyre:

12.00-20 bias tyre (tubeless tyre is optional)

Wheel base(mm):

2925+1350

Front/Rear overhang:

1430/725

Front/rear tread(mm):

2050/1860

Min. Clearance(mm):

300

Min. turning diameter(mm):

6900

Max speed:

44km/h

Max. Gradeablity:

17°

Oil tank:

200L Al-alloy

Clearance of the 5th wheel(mm):

1280

Dimension:

6430x2530x3315

5th wheel:

50mm
